Rockford Fosgate - TM400X2ad

499,00 € *

Nur 474,05 € bei Vorkassenzahlung

Preise inkl. gesetzlicher MwSt. inkl. .

Artikel-Nr.: 56644

Lieferzeit ca. 1-3 Werktage ***

Die durchschnittliche Lieferzeit innerhalb Deutschlands beträgt 2-3 Werktage

Power Marine 400 Watt Class-ad 2-Channel Amplifier

Kostenloser Versand (DE)
Sichere Kaufabwicklung
Schnelle Lieferung
Professioneller Einbauservice (optional)
Bequem online bestellen und selbst abholen

Vorkasse Banküberweisung
PayPal
Amazon Pay
Pay with Klarna
Kredit- oder Debitkarte
Lastschrift
Barzahlung bei Abholung

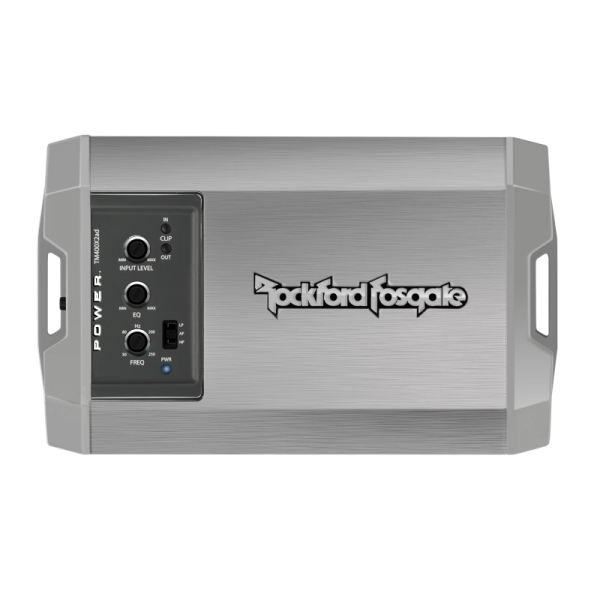

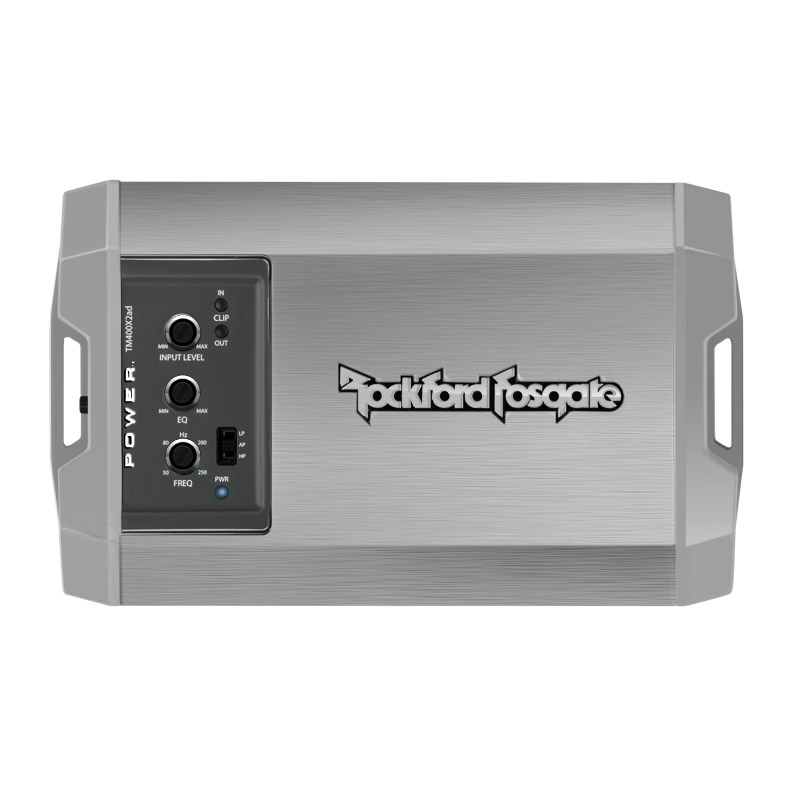

TM400X2ad

The TM400X2ad is a 400 Watt 2-channel amplifier with high efficiency Class-ad technology and a conformal coated pc board designed for motorsport and marine applications.

Rockford Fosgate proprietary Class-AD technology
4/2 Ohm muti-impedance Constant Power
Differential inputs with high level auto turn-on feature
8 AWG power/ground connector w/ upgraded RCA connectors
Remote-Out feature when using high level inputs
4 Ohm bridged capable
2013 PLC2 remote ready
C.L.E.A.N. input/output clip detection and indicator LEDs
Top mounted controls
Dual fan cooled
Real time thermal sensing
Dual extruded heat sinks
Discrete surface mount technology
Marine grade two part epoxy coating on circuit boards
2 Year Standard Warranty warranty info
Get a 1 Year Extended Warranty

Technische Daten

CEA-2006 Compliant: CEA-2006 Guidelines CEA-2006 Power Rating, 200W x 2 @ 4Ω, ≤1.0% THD+N
Number of Channels: 2
Rated Power (RMS Continuous Power): 200 Watts x 2 @ 4-Ohm, 200 Watts x 2 @ 2-Ohm, 400 Watts x 1 @ 4-Ohm Bridged
Total Power (Sum of Rated Power): 400 Watts
Dynamic Power (PVC/PowerCube®): 223 Watts x 2 @ 4-Ohm, 248 Watts x 2 @ 2-Ohm, 449 Watts x 1 @ 4-Ohm Bridged
Bridgeable: Yes
Terminals: Left (+) Right (-)
Frequency Response: 20Hz - 20kHz +/-1dB
Efficiency (average): >75%
Total Harmonic Distortion (THD+Noise): 4-Ohm: <1.0%, 2-Ohm: <1.0%
Crossover Controls: High-Pass: 50Hz - 250Hz @ 12dB/Octave Butterworth, Low-Pass: 50Hz - 250Hz @ 12dB/Octave Butterworth, All-Pass: Yes
Tone Controls: Treble: 0 to +14 dB @ 12.5 kHz
Bass: 0 to +18 dB @ 45 Hz
Input Sensitivity: 150 mV - 12 V
Signal Input: High/Low Level Input: 4-Pin harness
Signal Output: -
Power Input Connector: Detachable Compression Terminal
Power Wire Gauge: 8 AWG
Speaker Output Connector: 4-Pin Harness
Speaker Wire Gauge: 16 AWG
Heat Sink Type: Extruded Aluminum
Cooling: Dual Fan Cooled
Remote Controls: Optional PLC2 provides Punch Level Control
Visual Indicators: Power: Blue LED, Protect: Red LED, Input Clip: Red LED, Output Clip Blue/Red LED
Circuit Topology Class: Class-A/D
Operating Voltage: 9 - 16 VDC
Recommended Fuse (not included): 60 A
Max. Current Draw (13.8V Sinewave): 45 A
Average Current Draw (13.8V Music): 23 A
Suggested Alternator: 75 A
Shipping Weight: 2.9 Lbs. (1.31 Kg.)
Dimensions: (H x W x D): 1.6 x 4.25 x 7 (in.) (4.1 x 10.79 x 17.78 (cm)

Lieferumfang

1 Stück TM400X2ad
