TM400X4ad

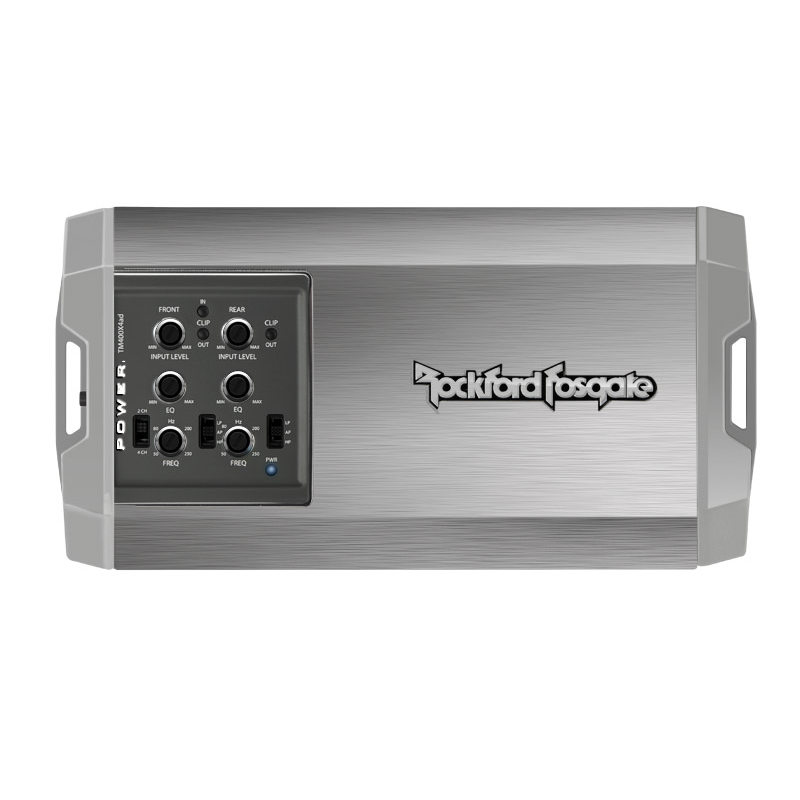

The TM400X4ad is a 400 Watt 4-channel amplifier with high efficiency Class-ad technology and a conformal coated pc board designed for motorsport and marine applications.
- Rockford Fosgate proprietary Class-AD technology
- 4/2 Ohm muti-impedance Constant Power
- Differential inputs with high level auto turn-on feature
- 8 AWG power/ground connector w/ upgraded RCA connectors
- Remote-Out feature when using high level inputs
- 2/4 channel input switch
- 4 Ohm bridged capable
- C.L.E.A.N. input/output clip detection and indicator LEDs
- Top mounted controls
- Dual fan cooled
- Real time thermal sensing
- Dual extruded heat sinks

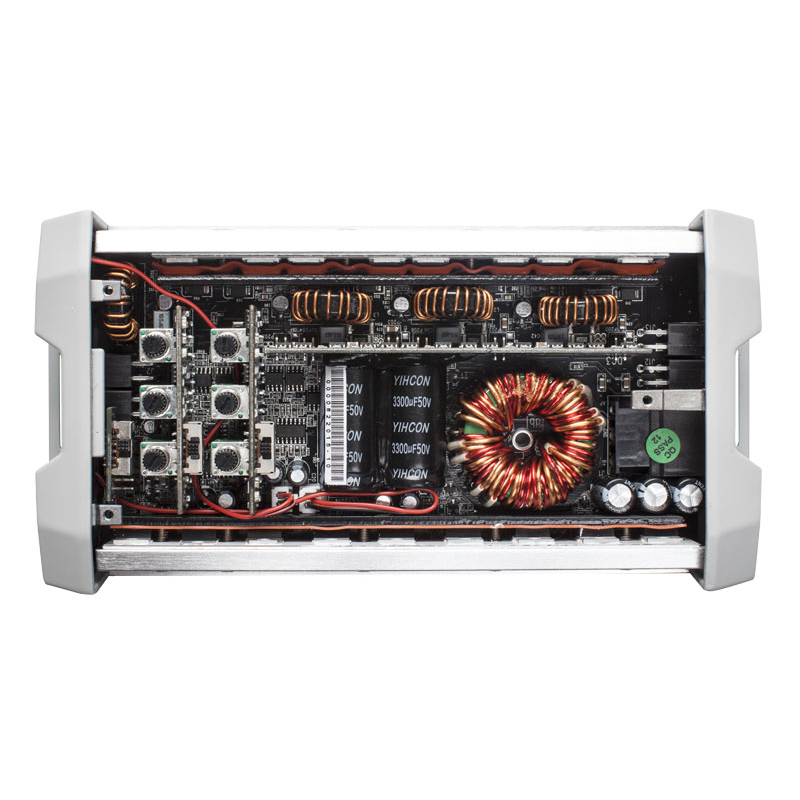

- Discrete surface mount technology
- Marine grade two part epoxy coating on circuit boards
- 2 Year Standard Warranty warranty info
- Get a 1 Year Extended Warranty
Technische Daten
- CEA-2006 Compliant: CEA-2006 Guidelines CEA-2006 Power Rating, 100W x 4 @ 4Ω, ≤1.0% THD+N
- Number of Channels: 4
- Rated Power (RMS Continuous Power): 100 Watts x 4 @ 4-Ohm, 100 Watts x 4 @ 2-Ohm, 200 Watts x 2 @ 4-Ohm Bridged
- Total Power (Sum of Rated Power): 400 Watts
- Dynamic Power (PVC/PowerCube®): 128 Watts x 4 @ 4-Ohm, 152 Watts x 4 @ 2-Ohm, 290 Watts x 2 @ 4-Ohm Bridged
- Bridgeable: Yes
- Front Terminals: Left (+) Right (-)
- Rear Terminals: Left (+) Right (-)
- Frequency Response: 20Hz-20kHz +/-1dB
- Efficiency (average): >75%
- Total Harmonic Distortion (THD+Noise): 4-Ohm: <1.0% 2-Ohm: <1.0%
- Crossover Controls: High-Pass: 50Hz - 250Hz @ 12dB/Octave Butterworth
- Low-Pass: 50Hz - 250Hz @ 12dB/Octave Butterworth
- All-Pass: Yes
- Tone Controls: Treble: 0 to +14 dB @ 12.5 kHz
- Bass: 0 to +18 dB @ 45 Hz
- Input Sensitivity: 150 mV to 12 V

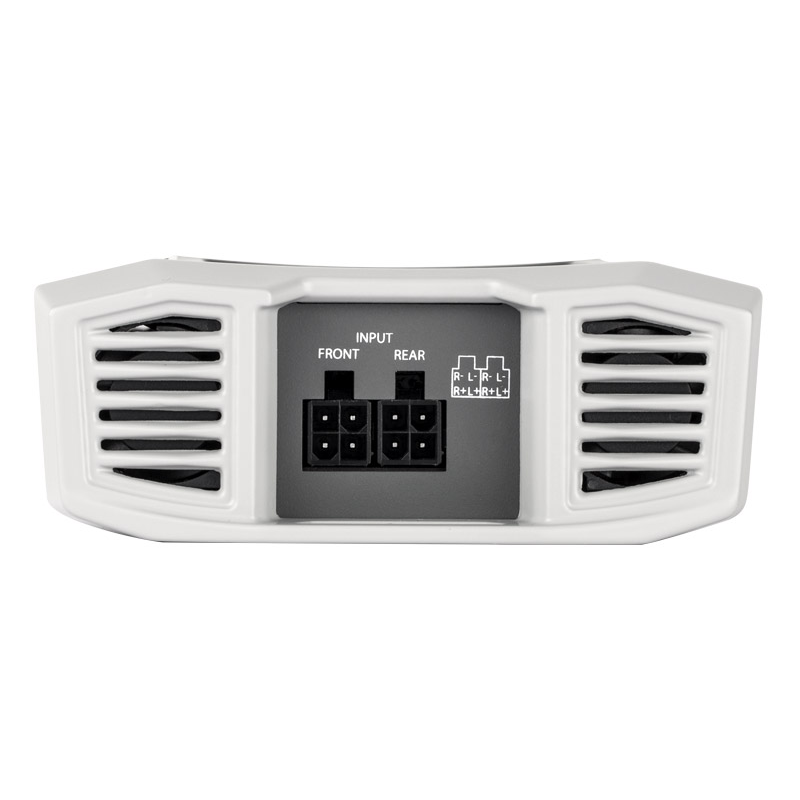

- Signal Input: Front High/Low Level Input: 4-Pin harness
- Rear High/Low Level Input: 4-Pin harness
- Signal Output: -

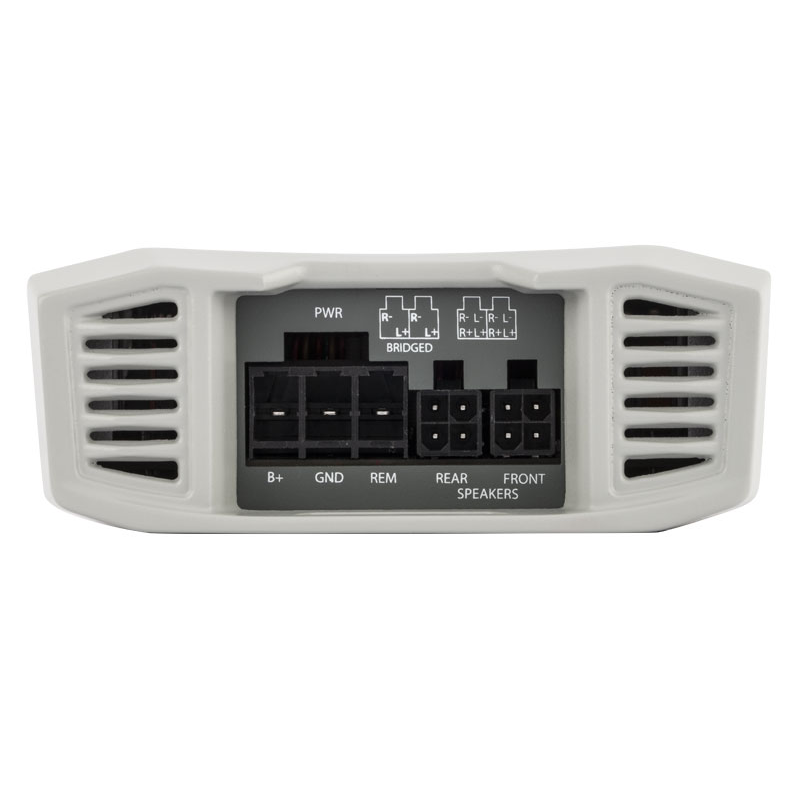

- Power Input Connector: Detachable Compression Terminal
- Power Wire Gauge: 8 AWG
- Speaker Output Connector: Front: 4-Pin Harness
- Rear: 4-Pin Harness
- Speaker Wire Gauge: 16 AWG
- Heat Sink Type: Extruded Aluminum
- Cooling: Dual Fan Cooled
- Remote Controls: Optional PLC2 provides Punch Level Control
- Visual Indicators: Power: Blue LED
- Protect: Red LED, Input Clip: Red LED, Output Clip Blue/Red LED, Circuit Topology Class: Class-A/D
- Operating Voltage: 9 - 16 VDC
- Recommended Fuse (not included): 60 A
- Max. Current Draw (13.8V Sinewave): 55 A
- Average Current Draw (13.8V Music): 28 A
- Suggested Alternator: 75 A
- Shipping Weight: 3.4 Lbs. (1.54 Kg.)
- Dimensions (H x W x D): 1.6 x 4.25 x 8.3 (in.) 4.1 x 10.79 x 21.1 (cm)
Lieferumfang
1 Stück TM400X4ad
