PM600X4
The PM600X4 is a 600 Watt 4-channel amplifier with high dynamic power using Class-a/b technology and a conformal coated pc board designed for motorsport and marine applications.
- High level input capable with Auto Turn-On circuit
- RCA pass-thru outputs
- Features C.L.E.A.N. Set-up
- Optional remote Punch Level Control (PLC2) ready (w/ input clip indicator)
- 12dB/octave Butterworth crossover
- On-board Punch EQ with +18dB boost @ 45Hz.
- Muted turn on
- Stealth top mounted control panel
- Cast aluminum heatsink
- Short circuit protection
- Over current protection

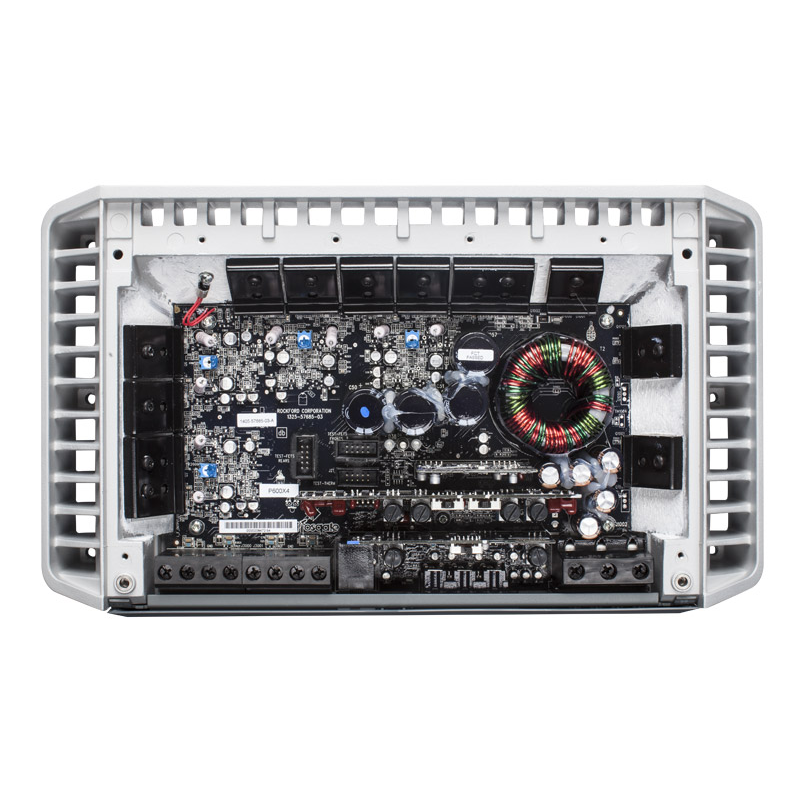

- Marine grade two part epoxy coating on circuit boards
- Marine grade stainless steel hardware
- 2 Year Standard Warranty warranty info
- Get a 1 Year Extended Warranty
Technische Daten
- CEA-2006 Compliant: CEA-2006 Guidelines CEA-2006 Power Rating, 75W x 4 @ 4Ω,≤1.0% THD+N
- Number of Channels: 4
- Rated Power (RMS Continuous Power): 75 Watts x 4 @ 4-Ohm, 150 Watts x 4 @ 2-Ohm, 300 Watts x 2 @ 4-Ohm Bridged
- Total Power (Sum of Rated Power): 600 Watts
- Dynamic Power (PVC/PowerCube®): 129 Watts x 4 @ 4-Ohms 0° Res, 211 Watts x 4 @ 2-Ohms 0° Res
- Bridgeable: Yes
- Frequency Response: 20Hz to 20kHz +/- 1.0dB
- Efficiency (average): 68% @ 4-Ohm
- Total Harmonic Distortion (THD+Noise): 4-Ohm: <1.0%, 2-Ohm: <1.0%
- Crossover Controls: Front/Rear High-Pass (HP): 50Hz-250Hz @ 12dB/octave Butterworth
- Front/Rear Low-Pass (HP): 50Hz-250Hz 12dB/octave Butterworth
- All-Pass: Yes
- Tone Controls: Front Punch EQ2 Bass: 0dB to +18dB @ 45Hz and/or
- Front Punch EQ2 Treble: 0dB to +12.5dB @ 12kHz
- Rear Punch EQ2 Bass: 0dB to +18dB @ 45Hz and/or
- Rear Punch EQ2 Treble: 0dB to +12.5dB @ 12kHz
- Function depends upon LP/AP/HP switch position
- Input Sensitivity: 150 mV - 12 V

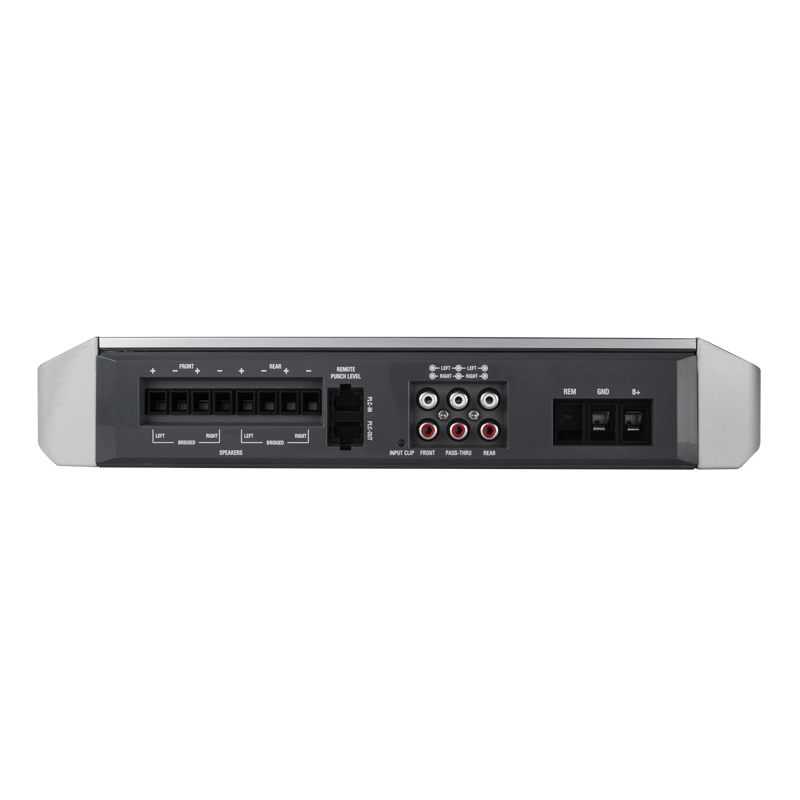

- Signal Input: Hi/Low level: 2 RCA pair
- Signal Output: Low level: 1 RCA pair
- Power Input Connector: Captive C-Clamp
- Power Wire Gauge: 4 AWG
- Speaker Output Connector: Captive C-Clamp
- Speaker Wire Gauge: 8 AWG to 18 AWG
- Heat Sink Type: Cast aluminum
- Cooling: Convection
- Remote Controls: Optional Punch Level Control (PLC2) Ready
- Visual Indicators: Power/Protect/Thermal LED, Power/Protect/Thermal LED, Input Clip LED
- Circuit Topology Class: Class-A/B
- Operating Voltage: 9 - 16 VDC
- Recommended Fuse
- (not included): 100 A
- Max. Current Draw (13.8V Sinewave): 90 A
- Average Current Draw (13.8V Music): 45 A
- Suggested Alternator: 75 A
- Shipping Weight: 12.8 Lbs. (5.80 Kg.)
- Dimensions (H x W x D): 2.38 x 7.76 x 13.28 (in), 6.05 x 19.71 x 33.73 (cm)
Lieferumfang
1 Stück PM600X4
