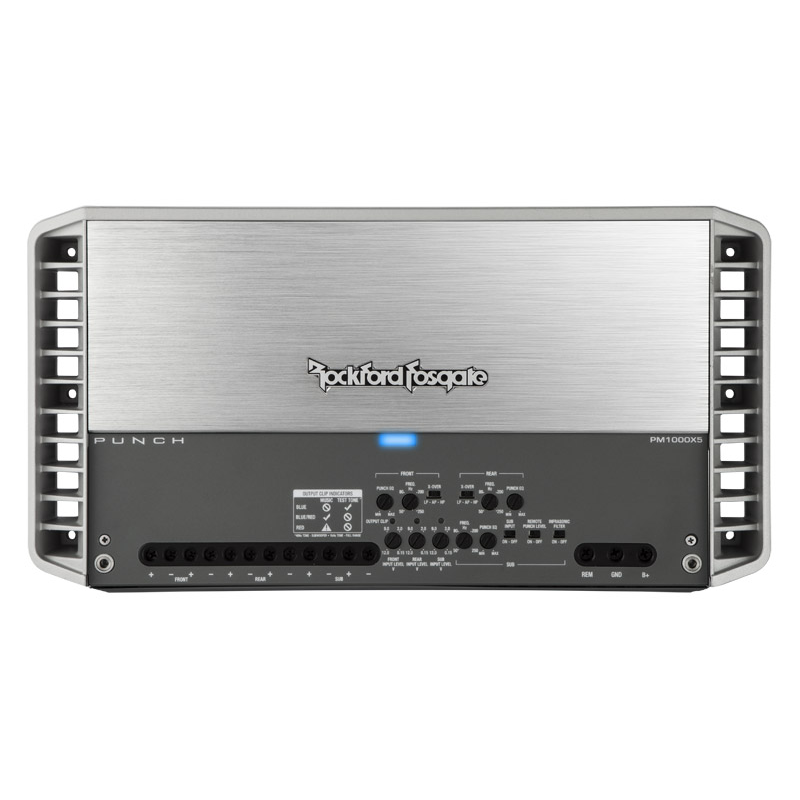

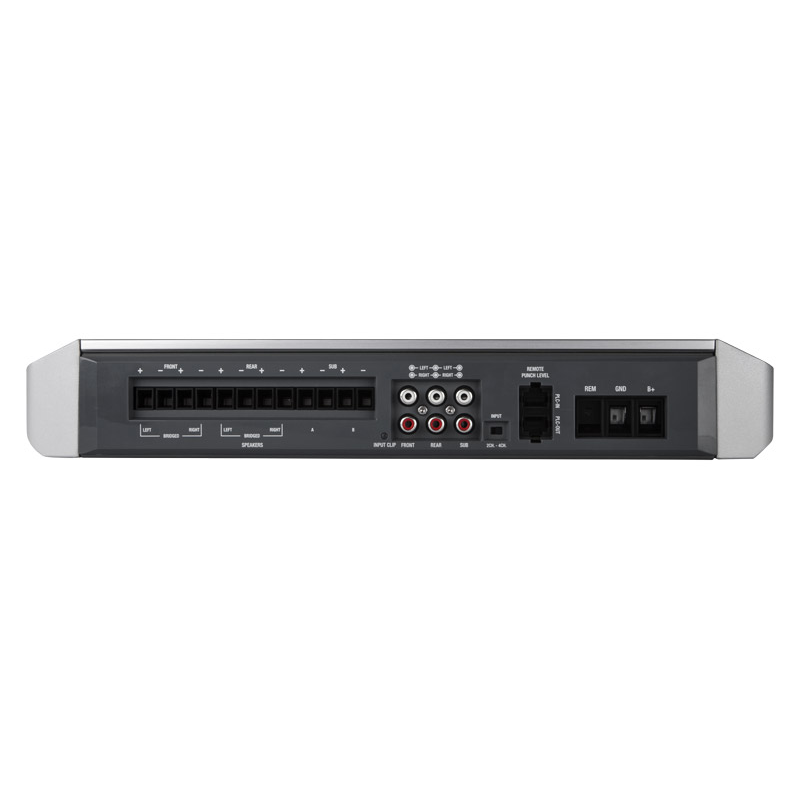

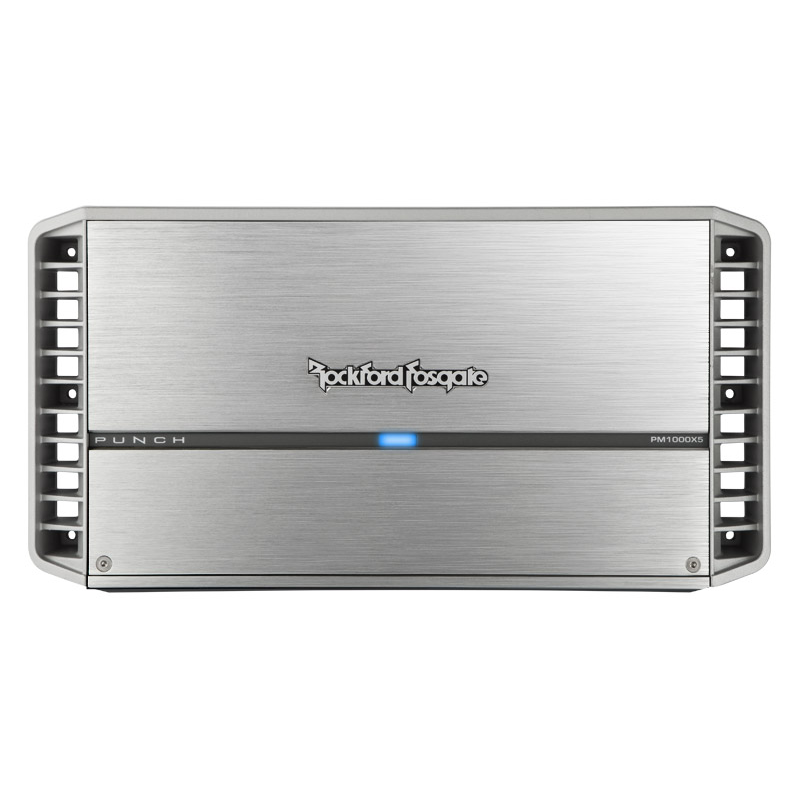

Rockford Fosgate - PM1000X5

899,00 € *

Nur 854,05 € bei Vorkassenzahlung

Preise inkl. gesetzlicher MwSt. inkl. .

Artikel-Nr.: 56650

Lieferzeit ca. 1-3 Werktage ***

Die durchschnittliche Lieferzeit innerhalb Deutschlands beträgt 2-3 Werktage

Punch Marine 1,000 Watt Class-bd 5-Channel Amplifier

Kostenloser Versand (DE)
Sichere Kaufabwicklung
Schnelle Lieferung
Professioneller Einbauservice (optional)
Bequem online bestellen und selbst abholen

Vorkasse Banküberweisung
PayPal
Amazon Pay
Pay with Klarna
Kredit- oder Debitkarte
Lastschrift
Barzahlung bei Abholung

PM1000X5

The PM1000X5 is a 500 Watt 5-channel amplifier with high dynamic power using Class-a/b technology on the front/rear channels, Class-bd for the subwoofer channel, and a conformal coated pc board designed for motorsport and marine applications.

High level input capable with Auto Turn-On circuit
Features C.L.E.A.N. Set-up
Optional remote Punch Level Control (PLC2) ready (w/ input clip indicator)
12dB/octave Butterworth crossover
On-board Punch EQ with +18dB boost @ 45Hz.
Muted turn on
Stealth top mounted control panel
Cast aluminum heatsink
Short circuit protection
Over current protection
Infrasonic filter
2/4 channel input switch

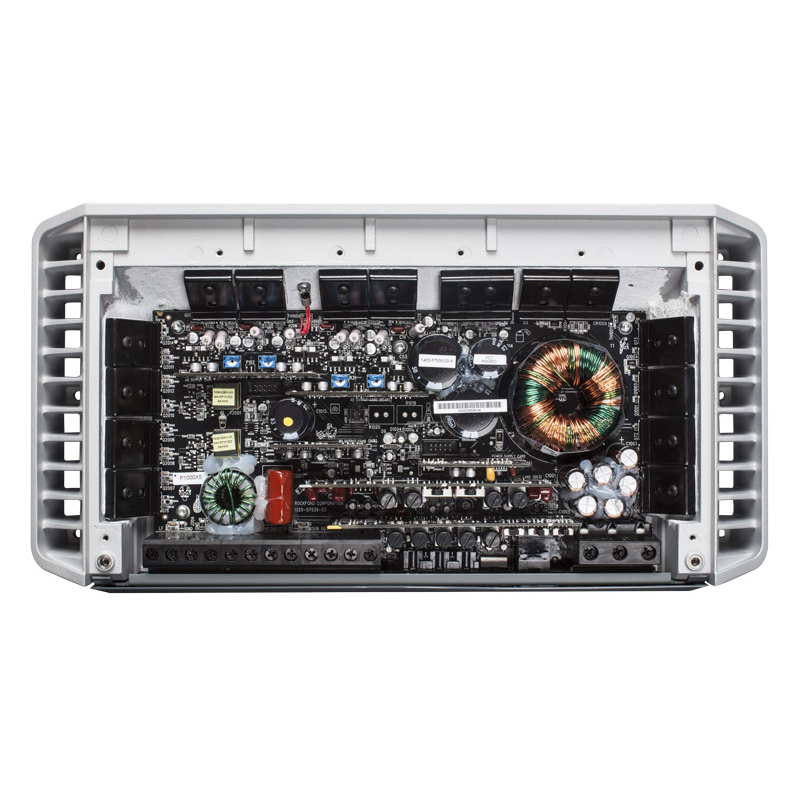

Marine grade two part epoxy coating on circuit boards
Marine grade stainless steel hardware
2 Year Standard Warranty warranty info
Get a 1 Year Extended Warranty

Technische Daten

CEA-2006 Compliant: CEA-2006 Guidelines CEA-2006 Power Rating, 75Wx4 + 150Wx1 @ 4Ω, ≤1.0% THD+N
Number of Channels: 5
Rated Power (RMS Continuous Power): 75 Watts x 4 +, 150 Watts x 1 @ 4-Ohm, 125 Watts x 4 +, 300 Watts x 1 @ 2-Ohm, N/A +, 500 Watts @ 1-Ohm
Total Power (Sum of Rated Power):1000 Watts
Dynamic Power (PVC/PowerCube®): 115 Watts x 4 + 299 Watts x 1 @ 4-Ohms 0° Res, 190 Watts x 4 +, 540 Watts x 1 @ 2-Ohms 0° Res, N/A + , 863 Watts x 1 @ 1-Ohm 0° Res
Bridgeable: Yes (front/rear channels)
Frequency Response: Front/Rear: 20Hz - 20kHz +/-3dB
Sub: 20Hz - 500Hz +/-3dB
Efficiency (average): Front/Rear: 66% @ 4-Ohm
Sub Channel: 80% @ 4-Ohm
Total Harmonic Distortion (THD+Noise): <1.0%
Crossover Controls: Front: 50Hz - 250Hz High-Pass @ 12dB/Octave
Rear: 50Hz - 250Hz High-Pass @ 12dB/Octave
Sub: 50Hz - 250Hz Low-Pass
Sub: 28Hz infrasonic filter @ 12dB/Octave
Tone Controls: Sub: 0dB to +18dB @ 45Hz
Input Sensitivity: 150 mV - 12 V
Signal Input: Input Switch: Hi/Low level input
Input Switch: 2/4 channel input
Hi/Low Level: 3 RCA Pair
Sub: front/sub input switch
Signal Output: -
Power Input Connector: Block
Power Wire Gauge: 4 AWG
Speaker Output Connector: Block
Speaker Wire Gauge: 12 AWG
Heat Sink Type: Cast
Cooling: Convection
Remote Controls: Optional Punch Level Control (PLC2) Ready
Visual Indicators: Power/Protect/Thermal LED, Input Clip LED, Output Clip LED
Circuit Topology Class: Front/Rear: Class-A/B
Sub: Class-BD
Operating Voltage: 9 - 16 VDC
Recommended Fuse (not included): 150 A
Max. Current Draw (13.8V Sinewave): 150 A
Average Current Draw (13.8V Music): 75 A
Suggested Alternator: 100 A
Shipping Weight: 15.3 Lbs. (6.93 Kg.)
Dimensions (H x W x D): 2.38 x 7.76 x 15.03 (in) 6.05 x 19.71 x 38.18 (cm)

Lieferumfang

1 Stück PM1000X5
